Adding and modifying targets

This chapter describes adding MySQL database, cluster and ClusterSet targets from the console and with EM CLI, autodiscovery, modifying and removing targets, and associating compliance standards.

Prerequisites for this page

• The plug-in deployed to the agent that will monitor the target (3.3). Until it is, the MySQL target types are not offered for that agent.
• The monitoring account and its password (2.4), and a network path from the agent host to the MySQL endpoint (2.3).
• A license key for each MySQL Database target (4.1).

Where to find it: Setup ▸ Add Target ▸ Add Targets Manually to add a target; the target’s own menu ▸ Target Setup ▸ Monitoring Configuration to change one; Enterprise ▸ Compliance ▸ Library to associate the standards.

Topics: 4.1 Target properties · 4.2 Add a target manually · 4.3 Add a target with EM CLI · 4.4 Autodiscovery · 4.5 Modify or remove a target · 4.6 Associate compliance standards · 4.7 Bulk onboarding and migration

4.1 Target properties

Every MySQL target is defined by the same small set of monitoring properties, whichever way you add it. The names in bold are the labels on the console page; the names in parentheses are the property keys EM CLI takes (4.3).

User and Password are credential properties. In the console they appear in the credentials area of the Add Target page, labeled MySQL User and MySQL Password; with EM CLI they go in -credentials rather than in -properties.

MySQL Database (ip_mysql_database)

Property	Key	Value
User	ip_mysql_database_username	the monitoring account from 2.4, user name only, without the host part
Password	ip_mysql_database_password	that account’s password
Host (default - localhost)	ip_mysql_database_host	host name or IP address of the MySQL server as the agent host reaches it. Empty only for a socket connection (2.6). One host: a MySQL Database target is one server, and the Run EXPLAIN job passes these values as comma-separated arguments; endpoint lists are for Cluster and ClusterSet targets
Port (default - 3306)	ip_mysql_database_port	the server’s listening port
Unix Socket Path (socket connections)	ip_mysql_database_socket	full path to the server’s socket file; local agent only, with Host left empty
TLS Mode (disabled / required / verify_ca / verify_identity)	ip_mysql_database_use_secure	transport security for this target (2.5)
Kerberos Configuration File	ip_mysql_database_kerberos_config	full path to a krb5.conf on the agent host, for Kerberos authentication
License Key	ip_mysql_database_license	the signed license key issued for this plug-in, pasted as one line

License Key. The console lets you add the target without a key, but nothing except availability collects until the key is accepted. The License metric reports the reason (License Required for no key) and raises a CRITICAL incident, and every other metric group on the target reports a collection error, Collection stopped by license status: …, until the status is Active. Availability keeps reporting, so the target stays Up rather than Down. Cluster and ClusterSet targets are containers, not licensed targets, and are never stopped.

The key is checked entirely on the agent host, every 15 minutes and again as soon as the property changes; nothing is sent to the MySQL server or outside Enterprise Manager. The Status column of the License metric gives the reason a key is not accepted: Invalid Signature (the key was altered), Wrong Plug-in (a key issued for a different plug-in; the 24ai and 13.5 editions share one key), or Expired.

MySQL InnoDB Cluster (ip_mysql_cluster)

The same properties, with the ip_mysql_cluster_ prefix in place of ip_mysql_database_, and two labels that read differently.

(Router) Host (ip_mysql_cluster_host) and (Router) Port (ip_mysql_cluster_port) take a MySQL Router endpoint, any member of the cluster, or a comma-separated list of them (members, or two Routers), so the target survives losing one. The target reads cluster-wide state through whichever member it lands on.

Host	Port	Result
mysql-a,mysql-b,mysql-c	3306	every host on that port
mysql-a,mysql-b,mysql-c	3306,3307,3308	paired in order
mysql-c	1830,1831,1832	one host, several ports

Any other combination, or an empty entry, is rejected. So is an entry that is not a plain host name, IP address or [IPv6] literal, a port outside 1 to 65535, or more than 16 endpoints: the target shows Down and every collection reports the error, rather than guessing.

The connection tries the list in order and moves on when a member does not answer. The connect timeout is 10 seconds for a single endpoint and 15 seconds shared across a list, never less than 5 seconds per attempt. With every member down the driver makes one extra attempt on the first entry before giving up, so budget N+1 attempts, not N.

User and Password (ip_mysql_cluster_username, ip_mysql_cluster_password): the monitoring account must carry the grants in 2.4 on the cluster. Created on the primary, it replicates to every member. TLS Mode, Unix Socket Path and Kerberos Configuration File behave as they do for a MySQL Database target.

MySQL InnoDB ClusterSet (ip_mysql_clusterset)

The same properties again with the ip_mysql_clusterset_ prefix, plus one that only this type has.

(Router) Host and (Router) Port (ip_mysql_clusterset_host, ip_mysql_clusterset_port) take the Router endpoint, a member, or a comma-separated list of members, with the same rules as the Cluster target above. Both the JDBC collections and the MySQL Shell session try the list in order; listing every member of every cluster is the configuration that survives losing any one of them.

A MySQL Router port works on both paths with password authentication. The Router forwards the JDBC connections and the MySQL Shell session to the current primary, and the AdminAPI still reports the cluster-wide view, so health_source reads ADMINAPI behind a Router exactly as it does on a member. List two Routers (router-1,router-2 with Port 6446) to survive losing one. With Kerberos, list member endpoints instead, because MySQL Shell cannot log in with Kerberos through a Router (2.2).

Availability (the Response metric) is Up while any listed endpoint answers. Whether the ClusterSet is healthy is a separate question, answered by the ClusterSetHealth metric from the AdminAPI’s cluster-wide view and never from the member that happened to answer. A member of a failed cluster answering the connection cannot make the target look healthy, and a failed member cannot make a healthy ClusterSet look Down.

The MySQL Shell session has its own process budget, separate from the JDBC connect timeout: 60 seconds for a single endpoint (30 seconds base plus a fixed 30-second reserve for the AdminAPI’s status fan-out to every cluster member), plus the list’s per-attempt budget for a list of more than one endpoint (the same 15 seconds shared, with a 5-second floor). A longer list is given proportionally more time to try every member before it is stopped.

DR Max Tolerated GTID Lag (transactions) (ip_mysql_clusterset_dr_max_lag): how many transactions the replica cluster may be behind the primary cluster and still count as ready for promotion. The dr_promotion_ready condition (7.1) evaluates against it.

Note: A ClusterSet target also needs mysqlsh on its agent host (2.2), and in this release its TLS Mode should be required or disabled (2.5). With a Kerberos Configuration File set, MySQL Shell authenticates with the agent user’s ticket and needs member endpoints rather than a Router port (2.2).

4.2 Add a target manually

Use this route for a single target, and for any endpoint autodiscovery cannot see (4.4).

1. Make sure the plug-in is deployed to the agent that will monitor the target (3.3). Until it is, the MySQL target types are not offered for that agent.

2. In the console, choose Setup → Add Target → Add Targets Manually, then click Add Target Manually.

3. In the dialog, choose the Host that runs the monitoring agent (this is the agent host, not the MySQL server). The host picker lists every agent host.

4. In Target Type, type MySQL and select MySQL Database.

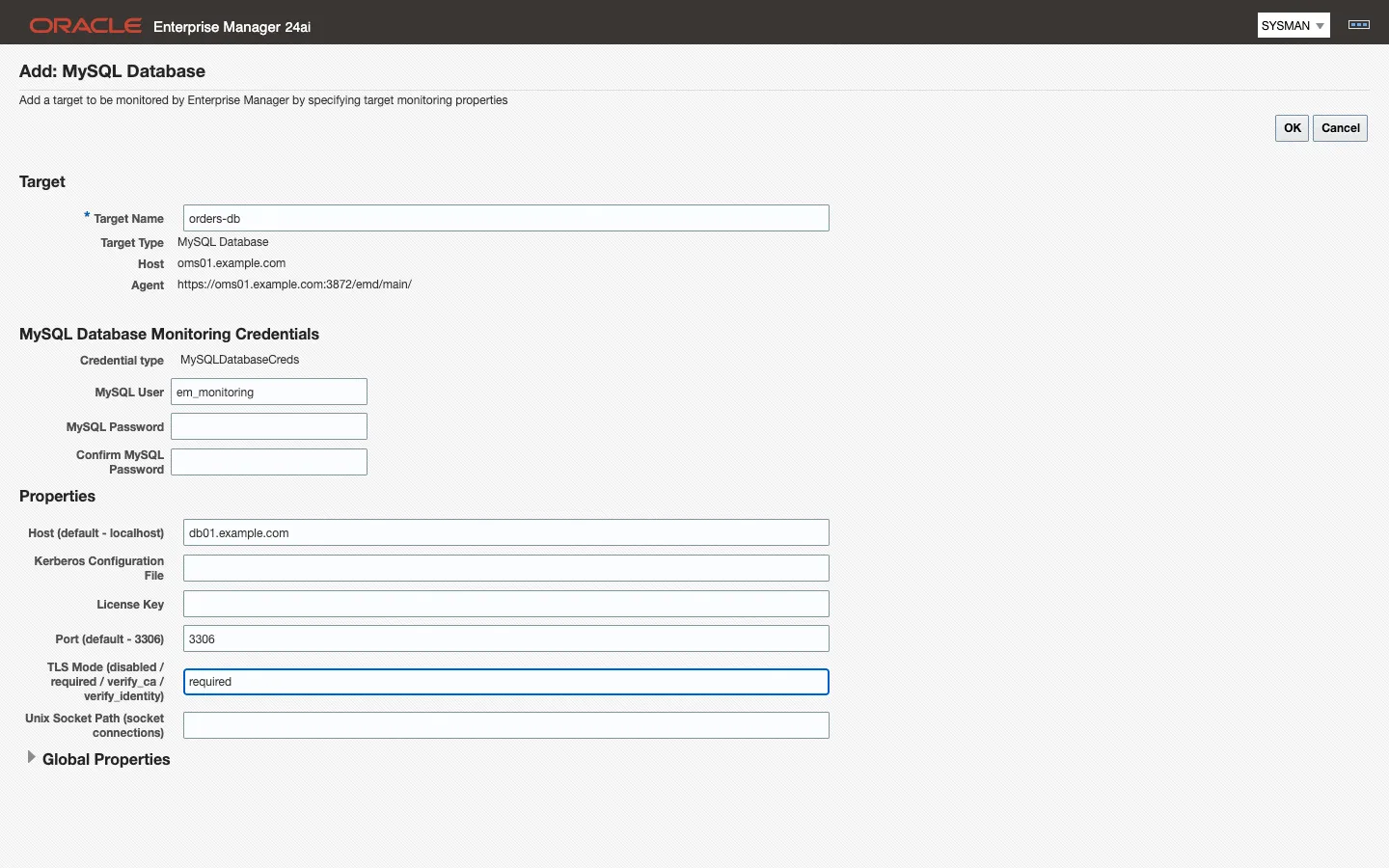

5. Click Add …. The Add: MySQL Database form opens with the host and agent already filled in.

6. Enter a Target Name. This is the display name used throughout the console and the name EM CLI verbs take. <host>:<port> is the convention autodiscovery uses and it stays readable at scale.

7. Fill in the monitoring properties from 4.1. At minimum supply MySQL User and MySQL Password (the credentials area, where the page asks for the password twice), Host, Port and the License Key, plus TLS Mode if the server requires an encrypted session. A target added without a key comes Up but collects nothing except availability until a key is accepted (4.1).

8. Click OK to create the target. The page has only OK and Cancel: there is no Test Connection step for these target types, so the first check of the properties is the target’s own status.

9. Wait for the target to appear in the console, which takes a couple of minutes, and confirm that it comes Up. If it stays Down, the cause is a credential, network or TLS problem. Correct the credentials or properties under Target Setup → Monitoring Configuration (4.5); you do not need to remove and re-add the target.

Repeat for MySQL InnoDB Cluster and MySQL InnoDB ClusterSet, choosing that target type in step 4 and filling in the properties listed for it in 4.1.

Once the target is Up, its metric groups populate on their own schedules.

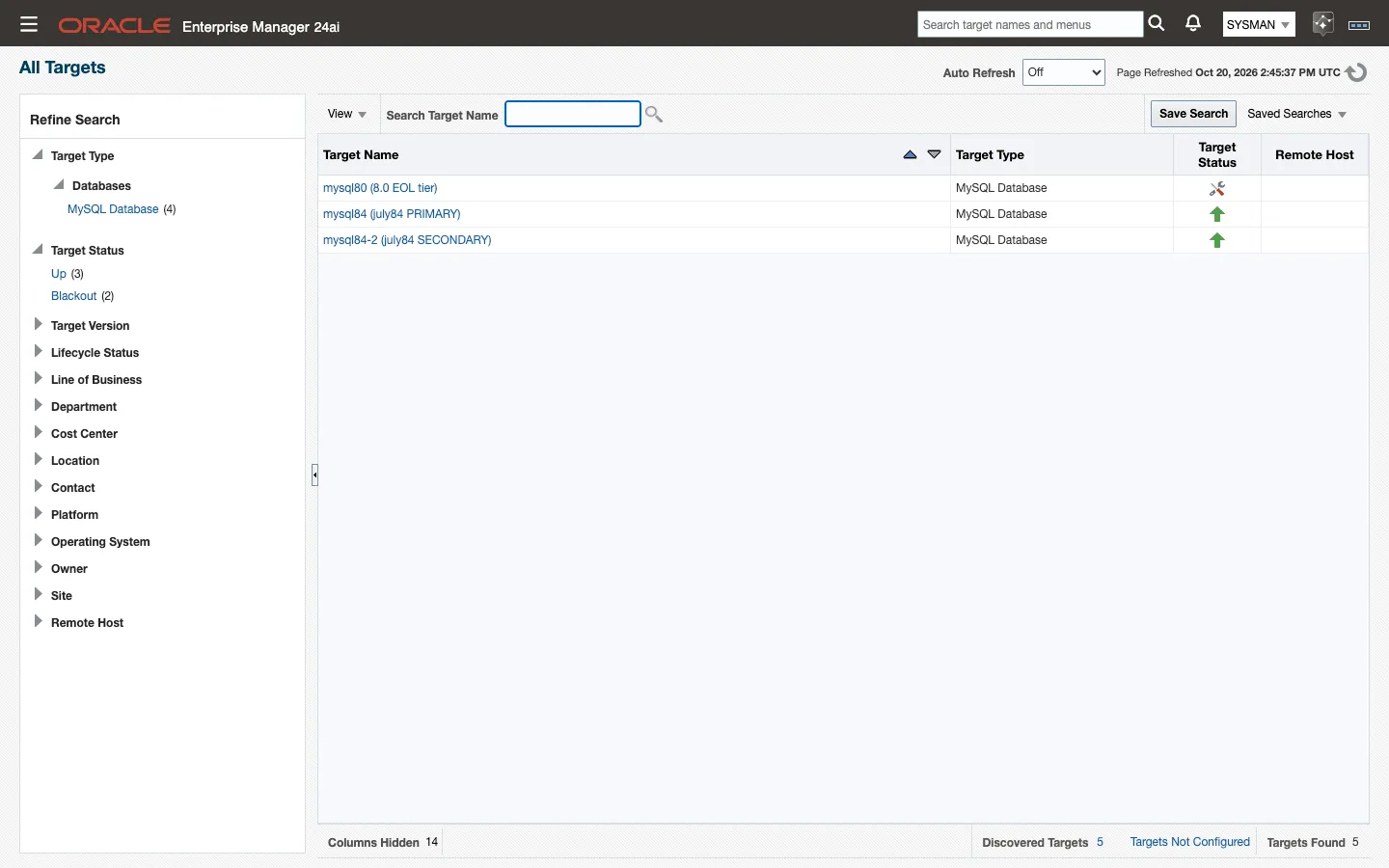

Done when the target shows Up on All Targets and its Overview page fills with the first collections (5.1).

Note: On Enterprise Manager 13.5 the Add Targets Manually page offers Add Targets Declaratively by Specifying Target Monitoring Properties instead of a dialog. Select it, choose the target type and the Monitoring Agent, and click Add Manually to reach the same form as step 6.

Note: On an Enterprise Manager 13.5 site that also has Oracle’s own MySQL plug-in deployed, the Target Type list shows two entries named MySQL InnoDB Cluster and two named MySQL InnoDB ClusterSet. Pick the one whose form shows the credential type MySQLClusterCreds (cluster) or MySQLClusterSetCreds (ClusterSet). Those are the Integration Plumbers types.

Note: Cluster and ClusterSet targets are independent of the MySQL Database targets for the same servers. You can add either without the other, and adding a cluster target does not create database targets for its members.

4.3 Add a target with EM CLI

EM CLI creates the same target as the console and is the practical route once you are onboarding more than a handful of servers.

add_target takes the display name, the target type, the agent host, and the monitoring properties split across two options:

Console target type	-type value	Property prefix
MySQL Database	ip_mysql_database	ip_mysql_database_
MySQL InnoDB Cluster	ip_mysql_cluster	ip_mysql_cluster_
MySQL InnoDB ClusterSet	ip_mysql_clusterset	ip_mysql_clusterset_

Console field	Key (<prefix> from the table above)	Option
User	<prefix>username	-credentials
Password	<prefix>password	-credentials
Host / (Router) Host	<prefix>host	-properties
Port / (Router) Port	<prefix>port	-properties
Unix Socket Path	<prefix>socket	-properties
TLS Mode	<prefix>use_secure	-properties
Kerberos Configuration File	<prefix>kerberos_config	-properties
License Key (MySQL Database only)	ip_mysql_database_license	-properties
DR Max Tolerated GTID Lag (ClusterSet only)	ip_mysql_clusterset_dr_max_lag	-properties

Note: on Cluster and ClusterSet targets, <prefix>host and <prefix>port accept the comma-separated lists described in 4.1. Commas inside a value pass straight through EM CLI; the ; between properties and the : after each name are unchanged.

Both options take key:value pairs separated by ;. Log in first with emcli login -username=<em user>.

A MySQL Database target:

emcli add_target -name="mysql84-prod-01" -type="ip_mysql_database" \
  -host="agent-host.example.com" \
  -properties="ip_mysql_database_host:10.0.0.21;ip_mysql_database_port:3306;ip_mysql_database_use_secure:required;ip_mysql_database_license:<license key>" \
  -credentials="ip_mysql_database_username:em_monitoring;ip_mysql_database_password:<password>"

A MySQL InnoDB Cluster target, pointed at a Router endpoint:

emcli add_target -name="mysql84-prod-cluster" -type="ip_mysql_cluster" \
  -host="agent-host.example.com" \
  -properties="ip_mysql_cluster_host:10.0.0.30;ip_mysql_cluster_port:6446;ip_mysql_cluster_use_secure:required" \
  -credentials="ip_mysql_cluster_username:em_monitoring;ip_mysql_cluster_password:<password>"

A MySQL InnoDB ClusterSet target, which adds the DR lag tolerance:

emcli add_target -name="mysql84-prod-clusterset" -type="ip_mysql_clusterset" \
  -host="agent-host.example.com" \
  -properties="ip_mysql_clusterset_host:10.0.0.30;ip_mysql_clusterset_port:6446;ip_mysql_clusterset_use_secure:required;ip_mysql_clusterset_dr_max_lag:100" \
  -credentials="ip_mysql_clusterset_username:em_monitoring;ip_mysql_clusterset_password:<password>"

The same ClusterSet behind two MySQL Routers, so that losing one Router does not take the target Down (the list rules are in 4.1; password authentication, because MySQL Shell cannot log in with Kerberos through a Router, 2.2):

emcli add_target -name="mysql84-prod-clusterset" -type="ip_mysql_clusterset" \
  -host="agent-host.example.com" \
  -properties="ip_mysql_clusterset_host:router-1.example.com,router-2.example.com;ip_mysql_clusterset_port:6446;ip_mysql_clusterset_use_secure:required;ip_mysql_clusterset_dr_max_lag:100" \
  -credentials="ip_mysql_clusterset_username:em_monitoring;ip_mysql_clusterset_password:<password>"

A ClusterSet target that authenticates with Kerberos lists its members, names the Kerberos configuration file, and carries the username only. Leave the password key out of -credentials altogether: add_target rejects an empty password value, and the ticket in the agent user’s credential cache is the credential (2.2):

emcli add_target -name="mysql84-prod-clusterset-krb" -type="ip_mysql_clusterset" \
  -host="agent-host.example.com" \
  -properties="ip_mysql_clusterset_host:mysql-a.example.com,mysql-b.example.com,mysql-c.example.com,mysql-d.example.com,mysql-e.example.com,mysql-f.example.com;ip_mysql_clusterset_port:3306;ip_mysql_clusterset_use_secure:required;ip_mysql_clusterset_kerberos_config:/etc/krb5.conf;ip_mysql_clusterset_dr_max_lag:100" \
  -credentials="ip_mysql_clusterset_username:em_monitoring"

Confirm the target was created:

emcli get_targets -targets="mysql84-prod-01:ip_mysql_database"

Done when get_targets lists the target and its status reads Up within a few minutes.

Note: -host names the agent host that will monitor the target. The MySQL endpoint goes in the <prefix>host property, and the two are usually different: the same agent host appears in every command when one agent monitors many servers.

Note: If a value has to contain ; or :, override the separators rather than escaping them. Run emcli help add_target for the -separator and -subseparator syntax.

4.4 Autodiscovery

Enterprise Manager can propose MySQL Database targets for you on hosts it already monitors.

The plug-in’s agent-side discovery detects every listening mysqld process on a monitored agent host and proposes one target per instance, named <host>:<port>. The name carries no process ID, so it is stable across restarts, and several instances on one host are proposed separately by their listening ports.

Agent-side discovery has to be enabled for the host before anything appears: under Setup → Add Target → Configure Auto Discovery, enable the MySQL discovery module on each host you want scanned and set its schedule.

To adopt a proposed target:

1. Choose Setup → Add Target → Auto Discovery Results.
2. Select the proposed MySQL Database target and click Promote.
3. Supply the monitoring credentials (2.4) and the remaining properties from 4.1. TLS Mode in particular cannot be discovered; set it explicitly (2.5).
4. Click Promote to finish. The target comes Up; it starts collecting once its License Key property is set (discovery does not supply one: open the target, Target Setup → Monitoring Configuration, and paste the key; see 4.1).

Note: Managed-cloud MySQL (Amazon RDS and Aurora, Google Cloud SQL, Azure Database for MySQL and their equivalents) has no host process for an agent to see, so it is never autodiscovered. Add those endpoints manually (4.2 or 4.3), using the service endpoint as Host and its port.

Amazon RDS for MySQL

Certified 2026-09-09 on RDS MySQL 8.4.11. The standard monitoring user (2.4) collects every metric group with zero collection errors; nothing RDS-specific is needed beyond a security-group rule that admits the agent host on the endpoint port. What you see that differs from a self-managed server, none of it a defect:

• RDS snapshots are not MySQL Enterprise Backup or XtraBackup runs, so BackupHistory has no rows and BackupStatus reports both tools absent with no backup age, and the backup thresholds stay silent. Watch RDS backups in AWS.
• The AWS-managed accounts trip the account rules. rdsadmin@localhost (ALL PRIVILEGES, auth_socket) and the rds_superuser_role role (and the master user through that role) violate the security standard’s SUPER, GRANT OPTION, PROCESS, mysql-schema-write and wildcard-host rules. You cannot change those accounts; treat the violations as the documented baseline for RDS, or exclude the standard’s account rules for RDS targets.
• RDS defaults fire configuration rules that a hardened self-managed server would pass: redo/undo and binary-log encryption off, no keyring, require_secure_transport off (the 8.4 family default), password validation not installed, local_infile on, sql_mode not strict. Binary logging itself is off while automated backups are disabled (backup retention 0), which also fires the binary-logging rule. Change what the parameter group and backup settings allow; accept the rest as the managed baseline.
• Replica-side, Enterprise-only and lock-wait groups are empty on a stand-alone RDS instance, as on any server without a replica, the audit-log or firewall components, or lock contention: no rows, no errors. Table statistics appear once user tables see I/O.
• RDS MySQL 8.4 accepts plain and TLS connections by default, and TLS Mode required (4.1) works against the RDS endpoint. Verifying the RDS certificate chain (TLS Mode verify_ca or verify_identity) needs the truststore credential set and is not yet certified.

MySQL InnoDB Cluster and MySQL InnoDB ClusterSet targets are not autodiscovered either. They are added against an endpoint you choose, so create them manually.

4.5 Modify or remove a target

Monitoring properties can be changed at any time; the change applies from the next collection.

To change a target’s properties in the console:

1. From the target’s home page, choose the target-type menu → Target Setup → Monitoring Configuration.
2. Edit the properties (4.1) and click OK.

Editing credentials, host, port or TLS Mode is the normal way to move a target to a new endpoint or to turn encryption on. You do not need to remove and re-add the target for any of them.

To remove a target, choose the target-type menu → Target Setup → Remove Target and confirm.

The EM CLI equivalents:

emcli modify_target -name="mysql84-prod-01" -type="ip_mysql_database" \
  -properties="ip_mysql_database_port:3307" -on_agent

emcli delete_target -name="mysql84-prod-01" -type="ip_mysql_database"

-on_agent pushes the change to the agent immediately instead of waiting for the next agent resynchronization.

Note: Removing a target removes its collected metric history and its compliance associations with it. A target re-added under the same name starts both over, so prefer editing a target’s properties to deleting and recreating it.

4.6 Associate compliance standards

Adding a target does not associate compliance standards with it: neither the console wizard nor emcli add_target carries an association, so a new target has no compliance evaluations until you associate the standards.

The plug-in ships five standards for ip_mysql_database targets, collected in one framework:

Standard	Internal name
MySQL Administration Standard	xmys_administration_standard
MySQL Performance Standard	xmys_performance_standard
MySQL Replication Standard	xmys_replication_standard
MySQL Schema Standard	xmys_schema_standard
MySQL Security Standard	xmys_security_standard

All five are authored by INTEGRATION_PLUMBERS at version 1. Chapter 9 describes the framework and every rule in it.

From the console:

1. Choose Enterprise → Compliance → Library.
2. On the Compliance Frameworks tab, select MySQL Framework (Integration Plumbers). To associate a single standard instead, switch to the Compliance Standards tab and select one of the five.
3. Click Associate Targets.
4. Add the MySQL Database targets you want evaluated, then click OK and confirm.

With EM CLI, associate one standard at a time:

emcli associate_cs_targets -name="xmys_security_standard" -version=1 \
      -author=INTEGRATION_PLUMBERS -target_list="mysql84-prod-01"

Repeat the command for each of the five internal names you want evaluated on that target.

Note: The two options take different name forms. -name takes the standard’s internal name from the table above; -target_list takes the target display name alone.

Results appear on the target’s compliance pages once a configuration collection has run against the newly associated standards. See 9.2 for reading them.

Done when the target’s Compliance ▸ Results page lists the five standards with an evaluation date.

4.7 Bulk onboarding and migration

For more than a handful of targets (and for moving an estate off the Oracle MySQL plug-in) use the mysql-onboard.sh script (download, example inventory). It exports the existing targets to a CSV, creates the replacement GA plug-in targets side by side with add_target / modify_target -on_agent, verifies Up and license, associates the standards from 4.6, and retires the sources on request. The full sequence, the review flags and the threshold worksheet are in the migration chapter.

The same script moves targets from the Open Beta plug-in (ip.em.xmyb) to this release; the migration chapter covers it.
